The three position safety combines easiest operation with maximum reliability.
Position 1: Safety on // Bolt locked
Position 2: Safety on // Bolt can be opened
Position 3: Fire
The extra wide trigger with a glass-sharp trigger charakteristic is adjustable from 2.2 to 4.2 lb pull weight.
The removable magazine, which is made of tough weatherproof and temperature-resistant polymer, holds 5 Standard or 4 Mini/Magnum cartridges.
Simply perfect – simply SAUER. The bolt operates with a silky smoothness.
The ERGO MAX stock differentiates itself by the air face inclining to the rear. The thereby improved position of the head behind the telescopic sight allows calm sighting. In addition, the recoil felt is considerably reduced.

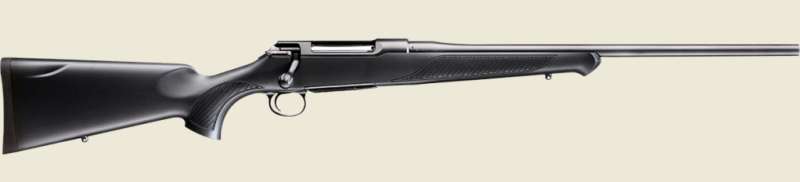

With the S 100, SAUER raises the standard for entry-level rifles to a new level. The compelling features of the S 100 - the adjustable single-stage trigger, three-position safety, hammer-forged original SAUER barrel, famously smooth SAUER bolt, and ERGO MAX stock geometry taken from the premium SAUER models S 101 and S 404 - make the SAUER 100 set the standard in this price class.
Caliber groups / Bolt heads | |
---|---|
Mini | .222 Rem., .223 Rem. |
Medium | .243 Win., .270 Win., .308 Win., .30-06, 6,5 Creedmoor, 6,5x55, 8x57IS, 9,3x62 |
Magnum | 7 mm Rem. Mag., .300 Win. Mag. |
Ø | Barrel length | Weight | |
---|---|---|---|
Mini | 56 cm | 3,05 kg | |
Medium | 56 cm | 3,05 kg | |
Magnum | 62 cm | 3,15 kg |
Caliber | Length of twist (mm) | Length of twist (Inches) | ||
---|---|---|---|---|
.222 Rem. | 305 mm | 12,0" | ||
.223 Rem. | 254 mm | 10,0" | ||
.243 Win. | 254 mm | 10,0" | ||
.270 Win. | 254 mm | 10,0" | ||
.308 Win. | 279 mm | 11,0" | ||
.30-06 Spring. | 279 mm | 11,0" | ||
.6,5 Creedmoor | 220 mm | 8,66" | ||
6,5x55 | 220 mm | 8,66" | ||
8x57 IS | 240 mm | 9,4" | ||
9,3x62 | 360 mm | 14,2" | ||
7 mm Rem. Mag. | 241 mm | 9,5" | ||
.300 Win. Mag. |
|
11,0" |
